FSP Four Sided Safety Covers

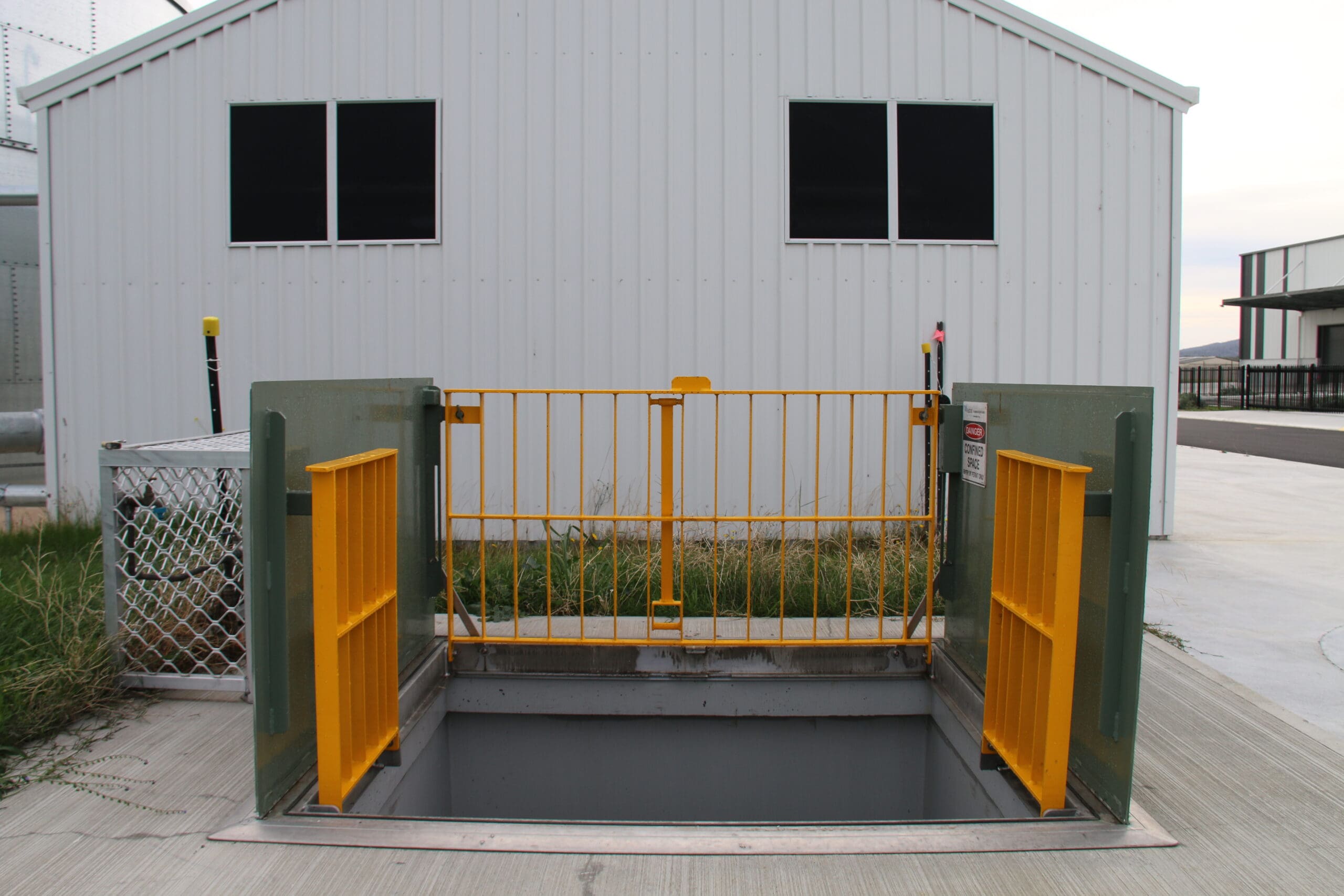

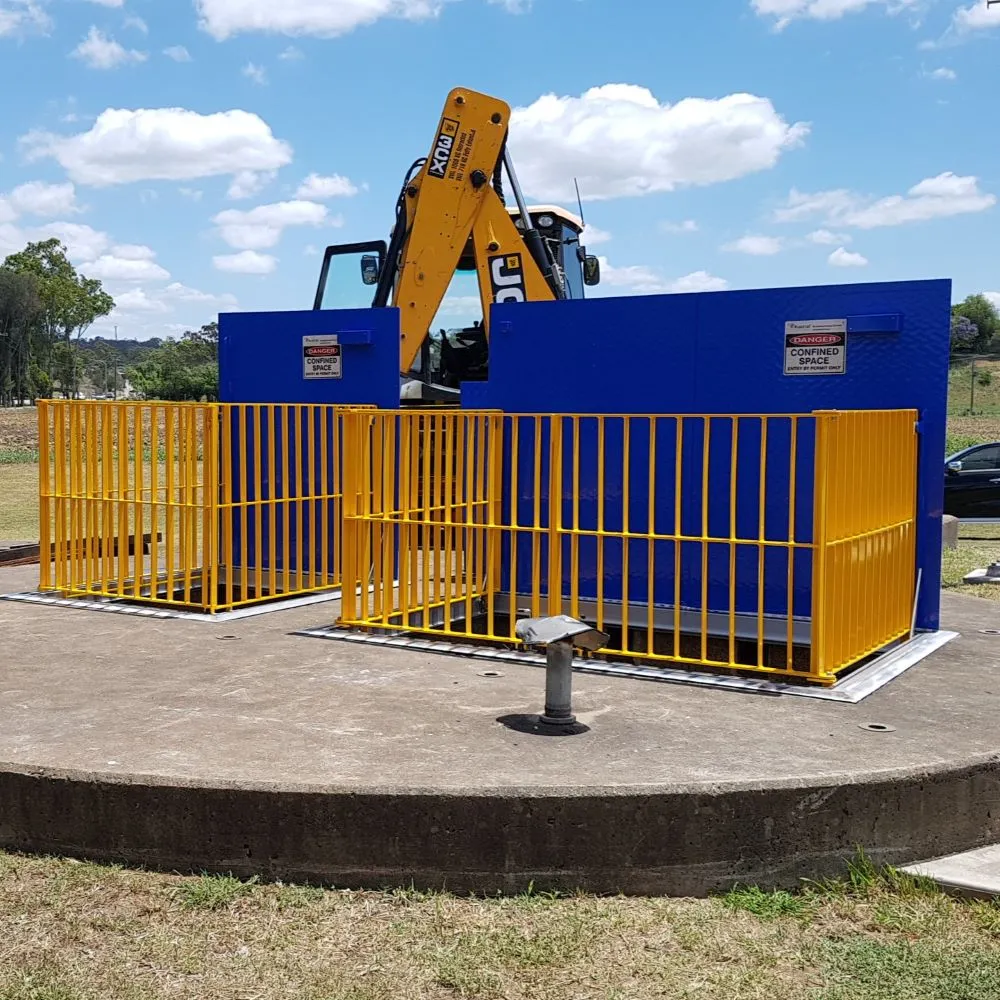

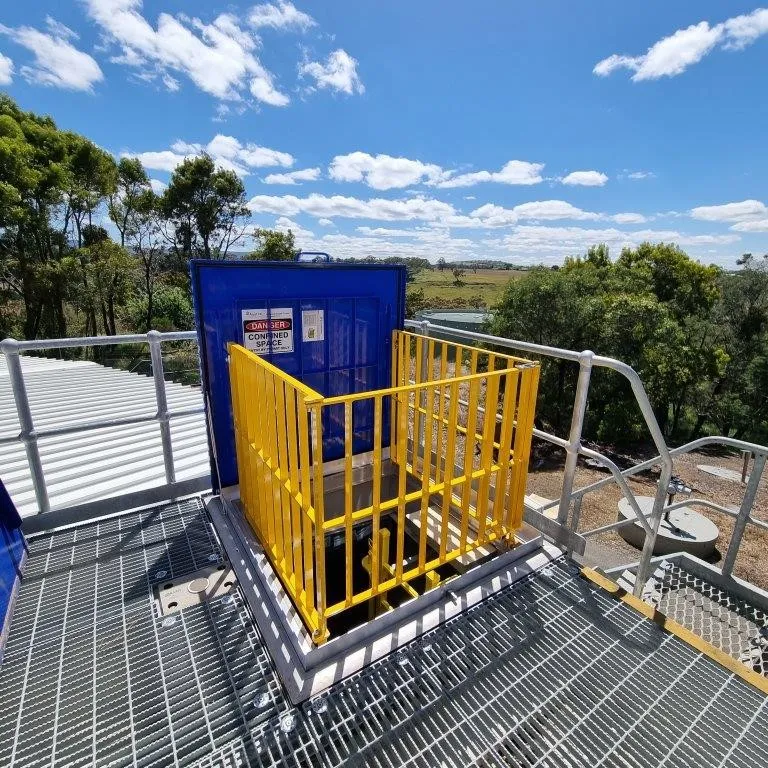

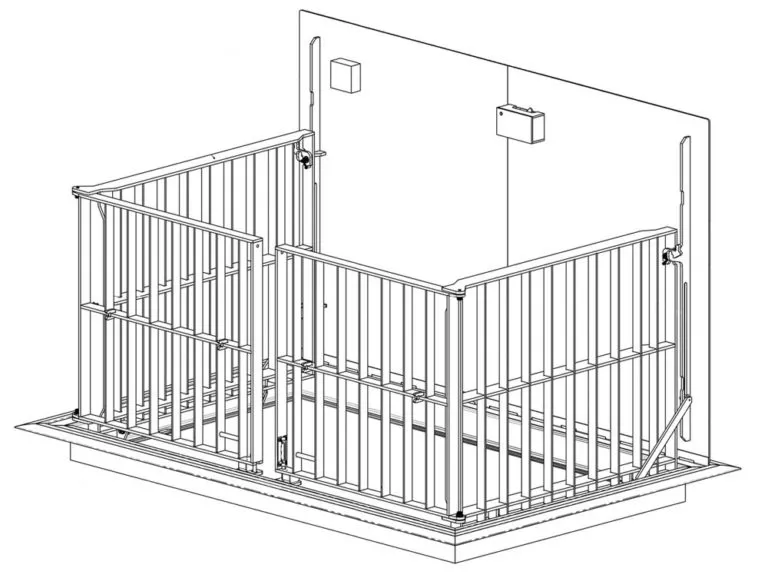

The FSP Premium Four-Sided Safety Cover is the highest level of opening protection available. Its folding gate system means the operator is never needlessly exposed to an open hatch.
The gates rise to a full guardrail height of 39-42 inches, meeting OSHA 1910.29 requirements. On smaller covers, a telescoping rail system provides a rail at a safe working height.
All standard-size FSP Premium Series Safety Covers are rated to ASTM C1802 Class 2 (300 lbs/psf, light-duty traffic). Hatches may also be available in AASHTO H20 loading on request of the technical team.
Standard Features

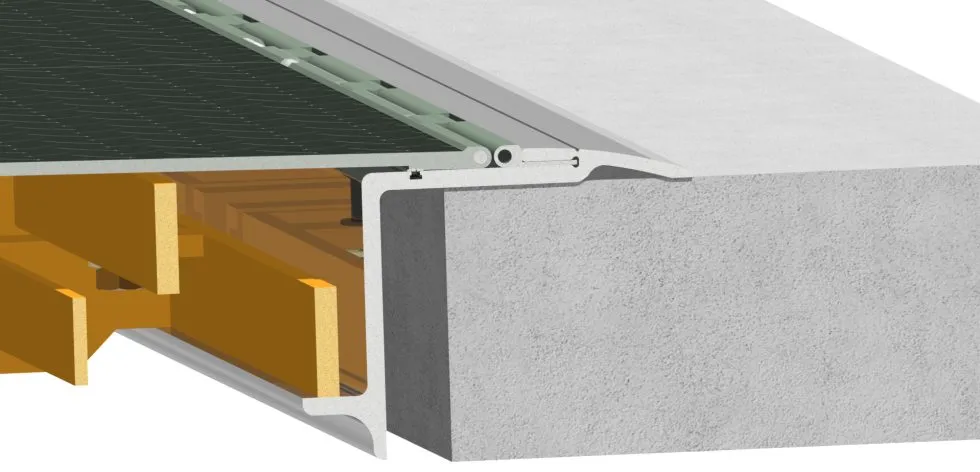

Heavy duty aluminium outer rim
Heavy duty aluminium extrusion with curved outer rim, low profile that is an aesthetically pleasing design reducing trip hazards and allowing lid to finish flush. Cover protrudes only 16 mm above pump station cover slab.
Engineered heavy duty top hung design, no fixing required through side of access cover frame.

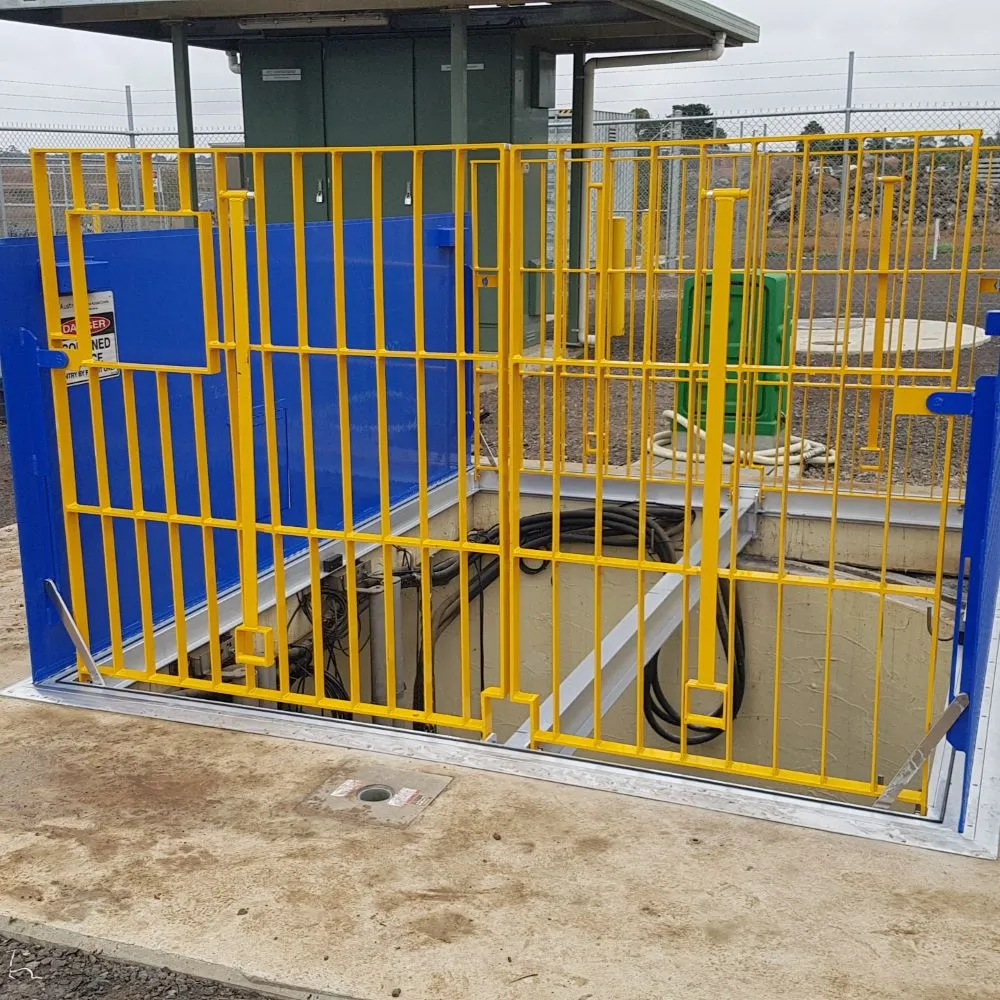

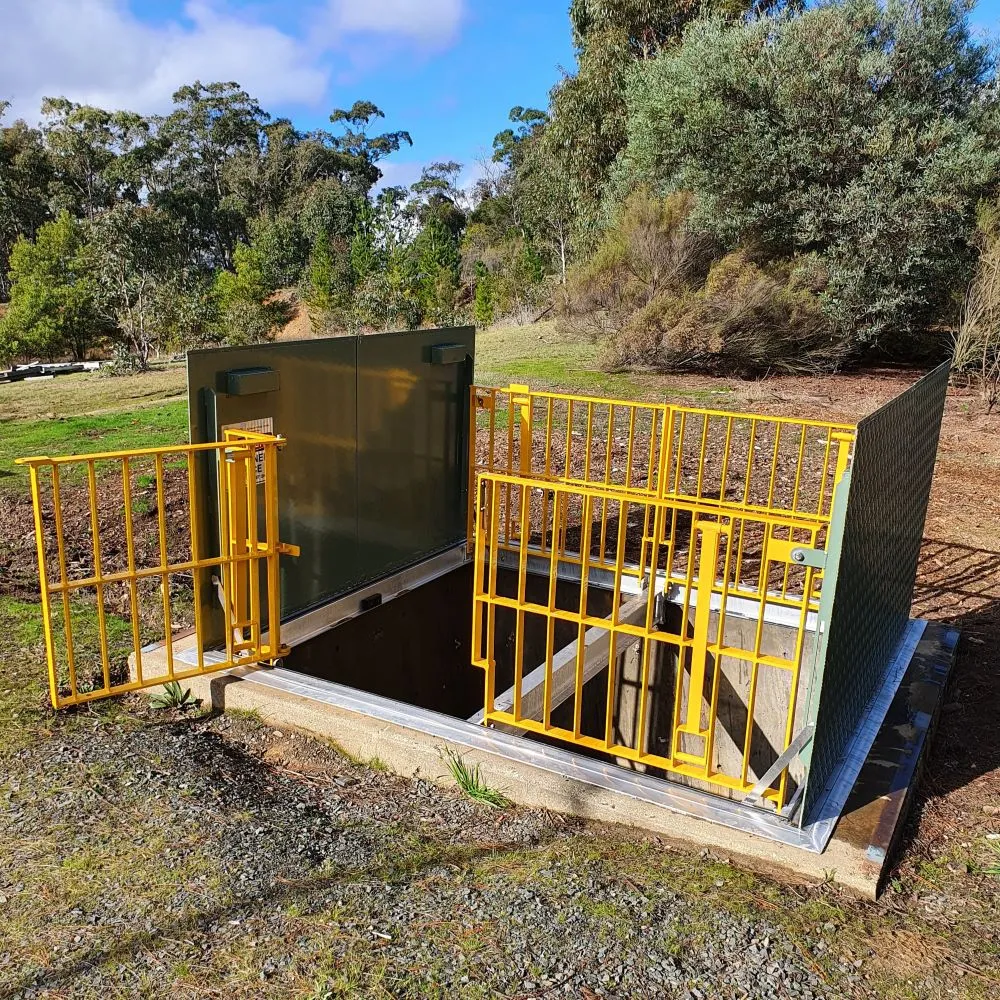

Safety Grates
Safety grates fold down with vertical supports perfectly overlapping to provide good visibility into wet well without needing to expose operator to the hole.
Vertical support spacing allows operator to withdraw float switches and instruments without having to raise safety grates.

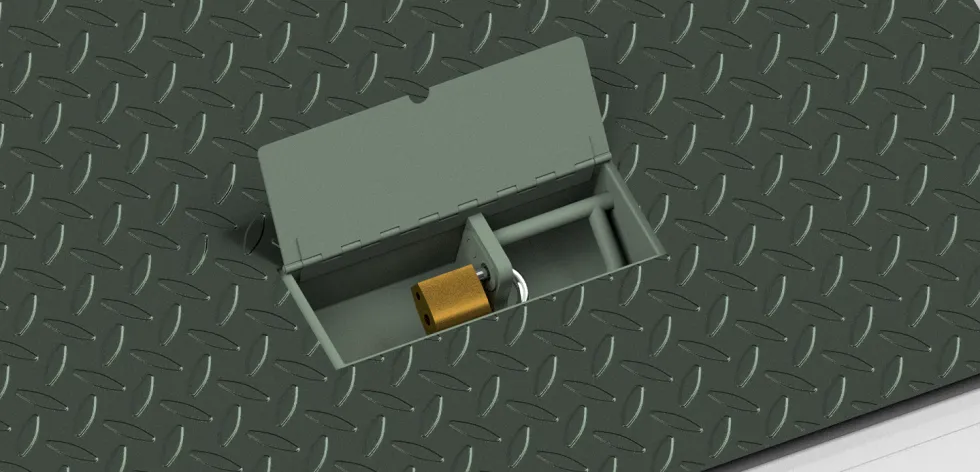

Lock box fits standard padlock
Lock box with sliding bolt that fits any standard water authority padlock.
Locking safety catch
Locking safety catch to hold safety grate in position at 90º.

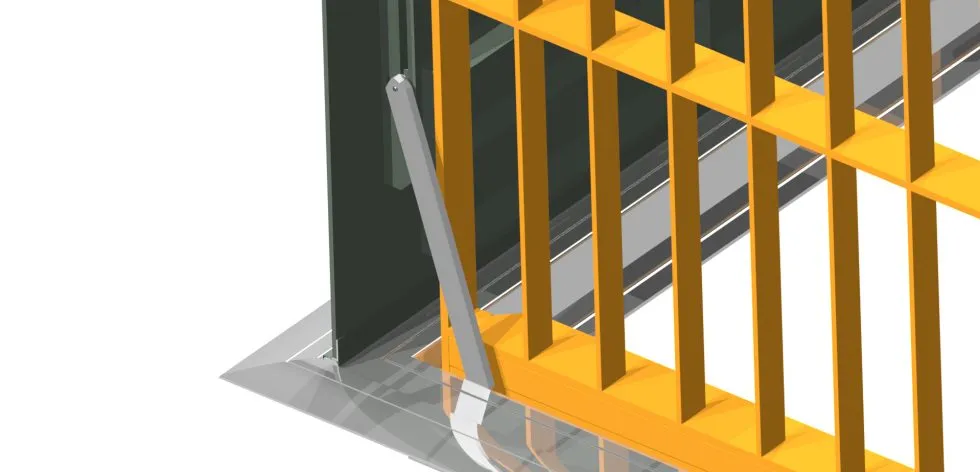

Support Strut
Support strut to lock lid securely in upright position.

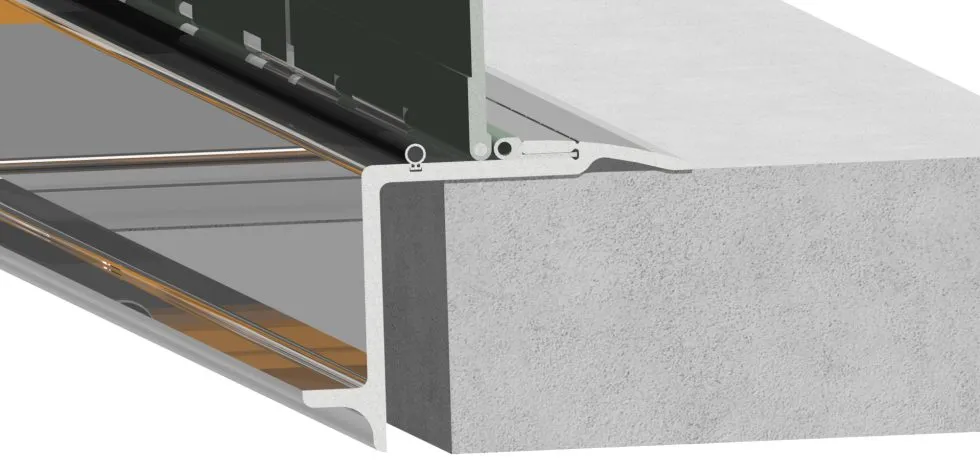

Captive Seal Profile
Captive seal profile in flexible ABS to eliminate sewer gas egress and prevent ingress of stormwater to the wet well.
Flush mounting continuous hinge to further eliminate trip hazards; can be removed and replaced easily.
Stainless steel hinge pins
Stainless steel hinge pins with isolating nylon bushes.
Danger sign
Confined space danger sign affixed to the underneath hatch cover.
