FSP Premium Series

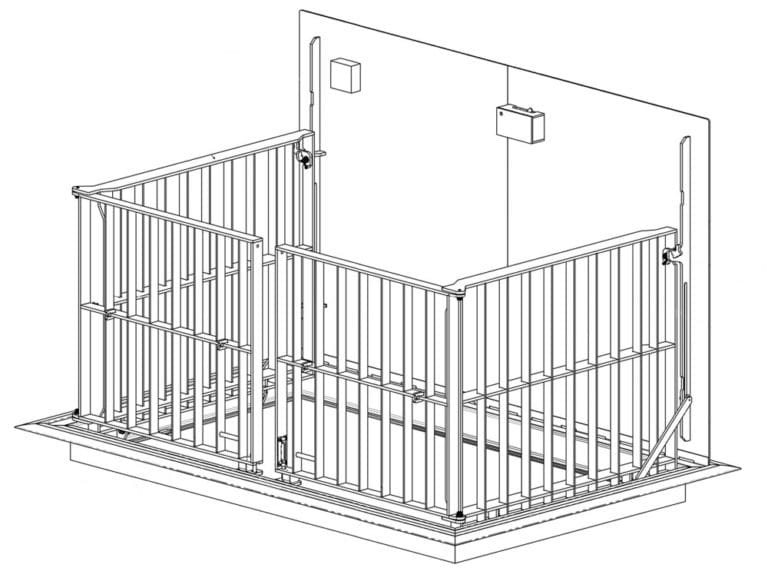

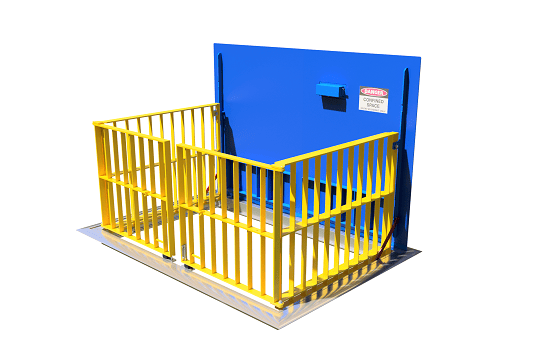

FSP Four Sided Safety Covers
The FSP Premium Four Sided Austral Safety Cover is the ultimate in void protection; with its unique folding gate system the operator is never needlessly exposed to the open void.
The height of the gates is designed compliant to a handrail height requirement of 900mm. For the smaller sized covers, a telescopic rail system is utilised to provide a rail at a safe working height.
The FSP Series Safety Grate design allows the access gates to operate independently to enable access to one pump at a time whilst still maintaining a four-sided barricade.
All standard size FSP Premium Series Safety Covers are rated to class B loading.

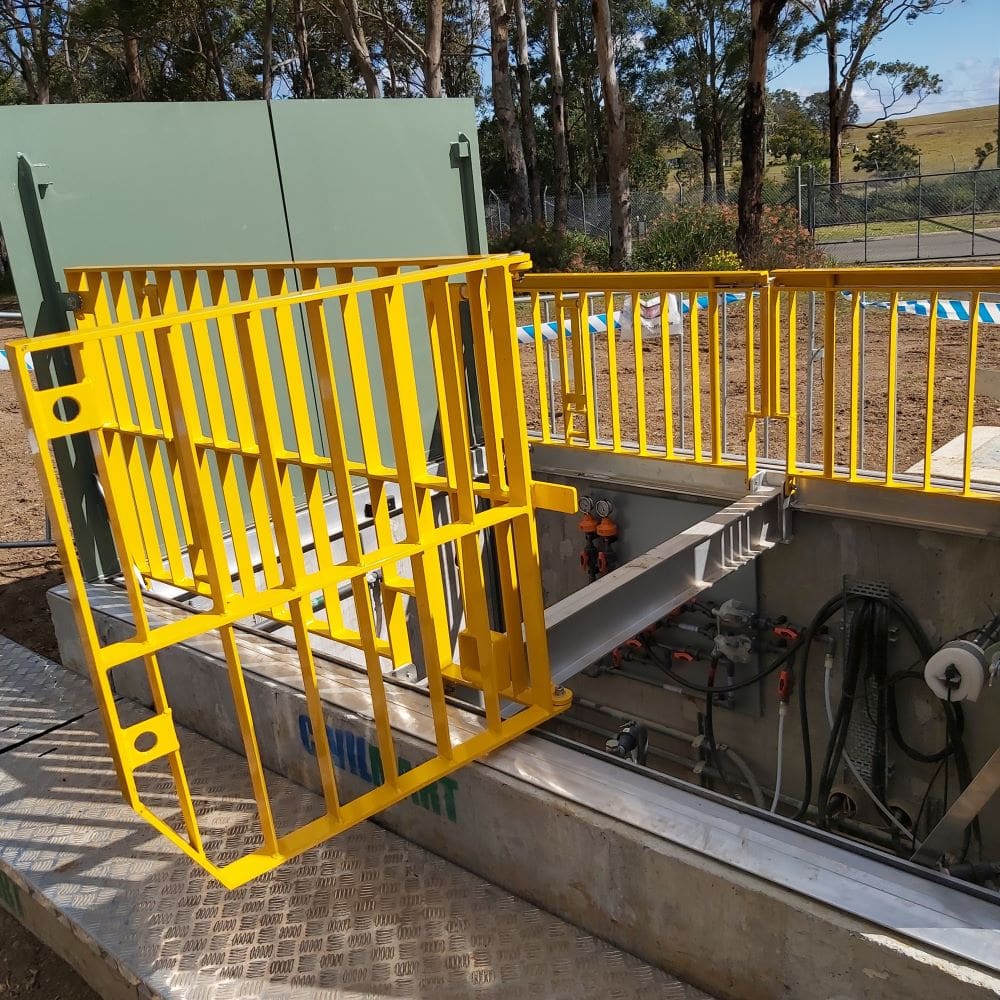

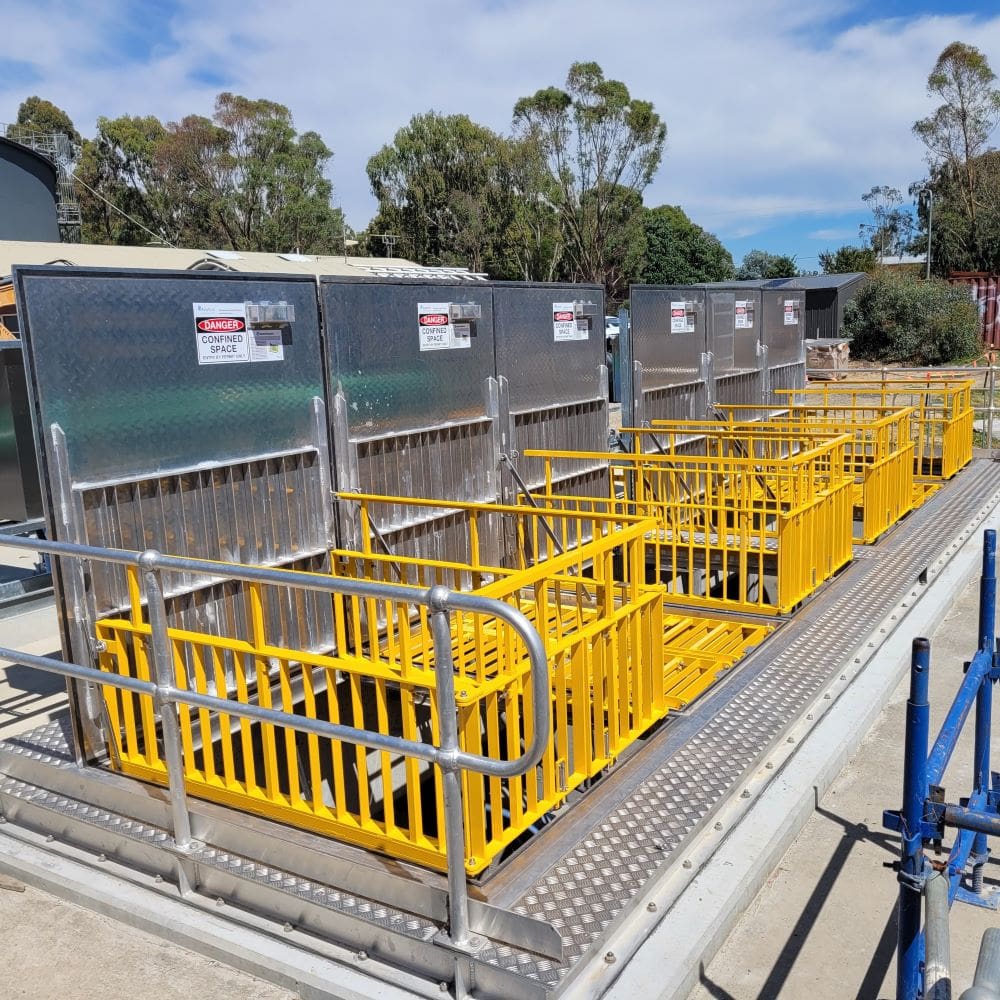

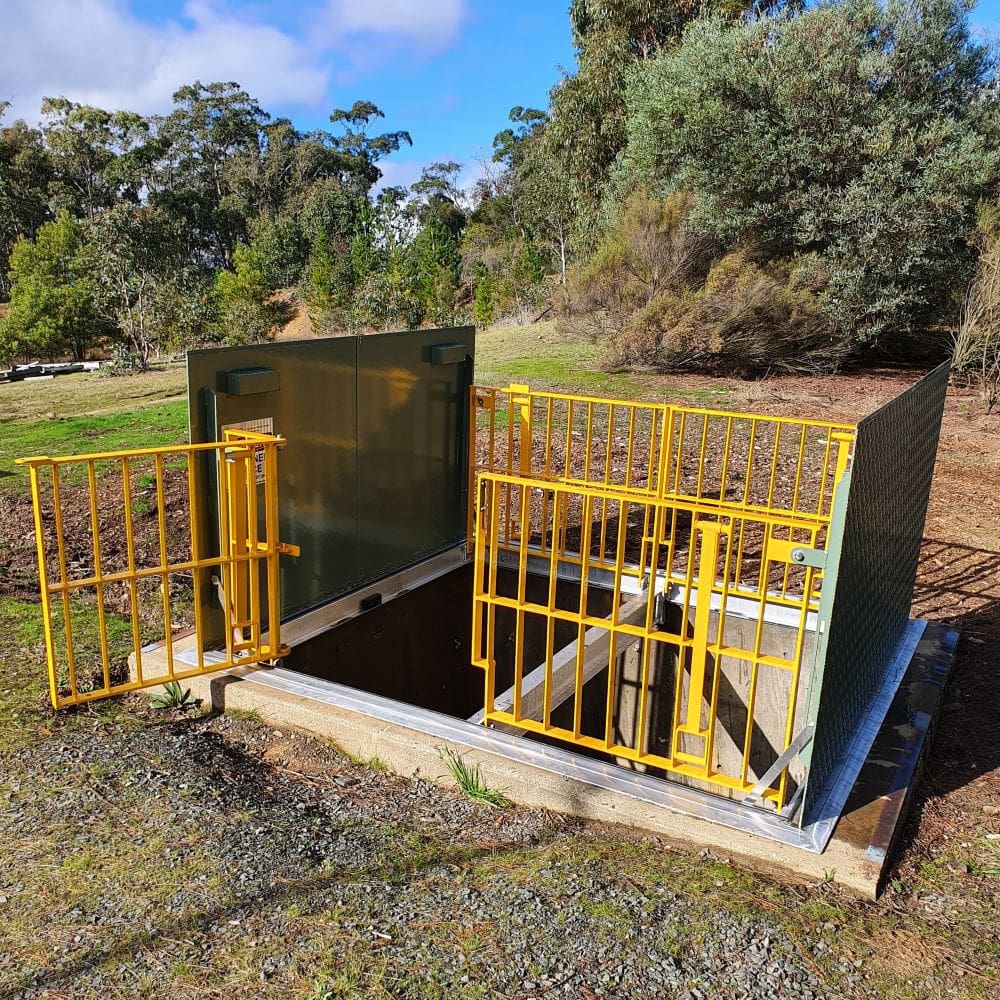

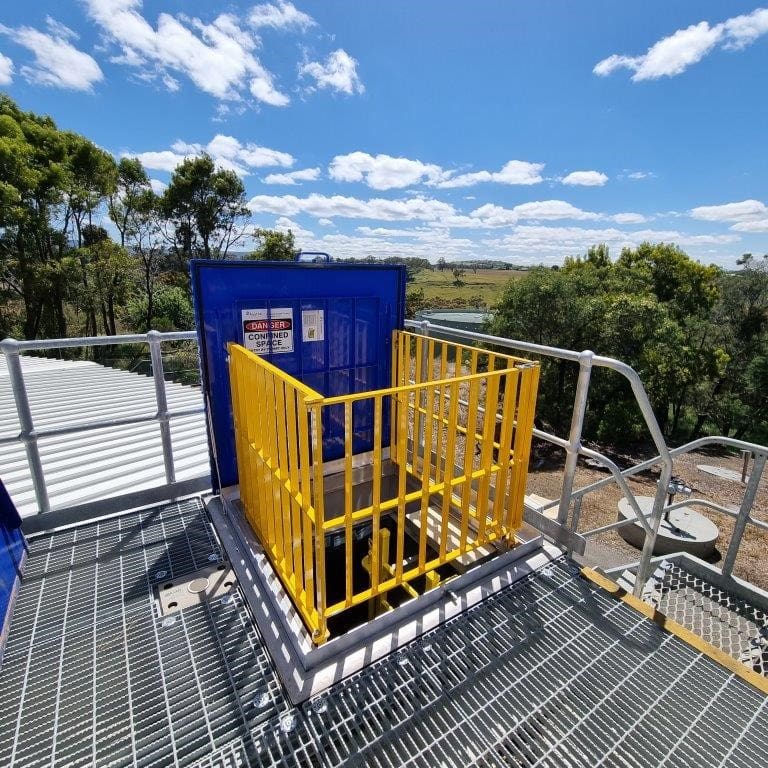

Installations
Standard Features

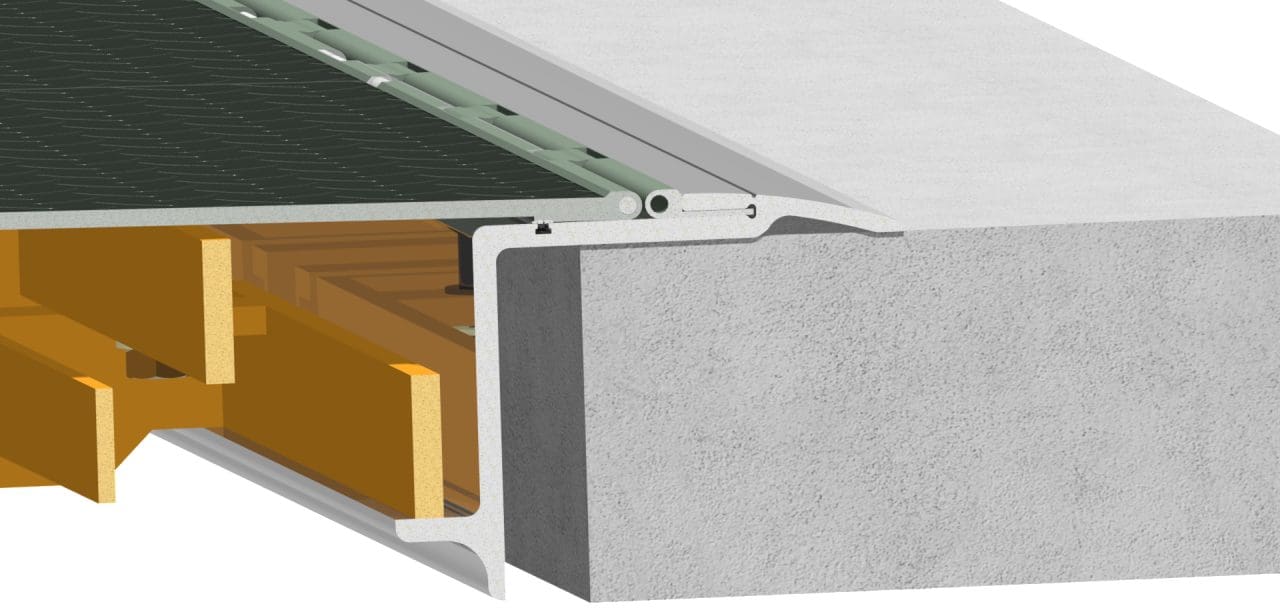

Heavy duty aluminium outer rim
Heavy duty aluminium extrusion with curved outer rim, low profile that is an aesthetically pleasing design reducing trip hazards and allowing lid to finish flush. Cover protrudes only 16 mm above pump station cover slab.
Engineered heavy duty top hung design, no fixing required through side of access cover frame.

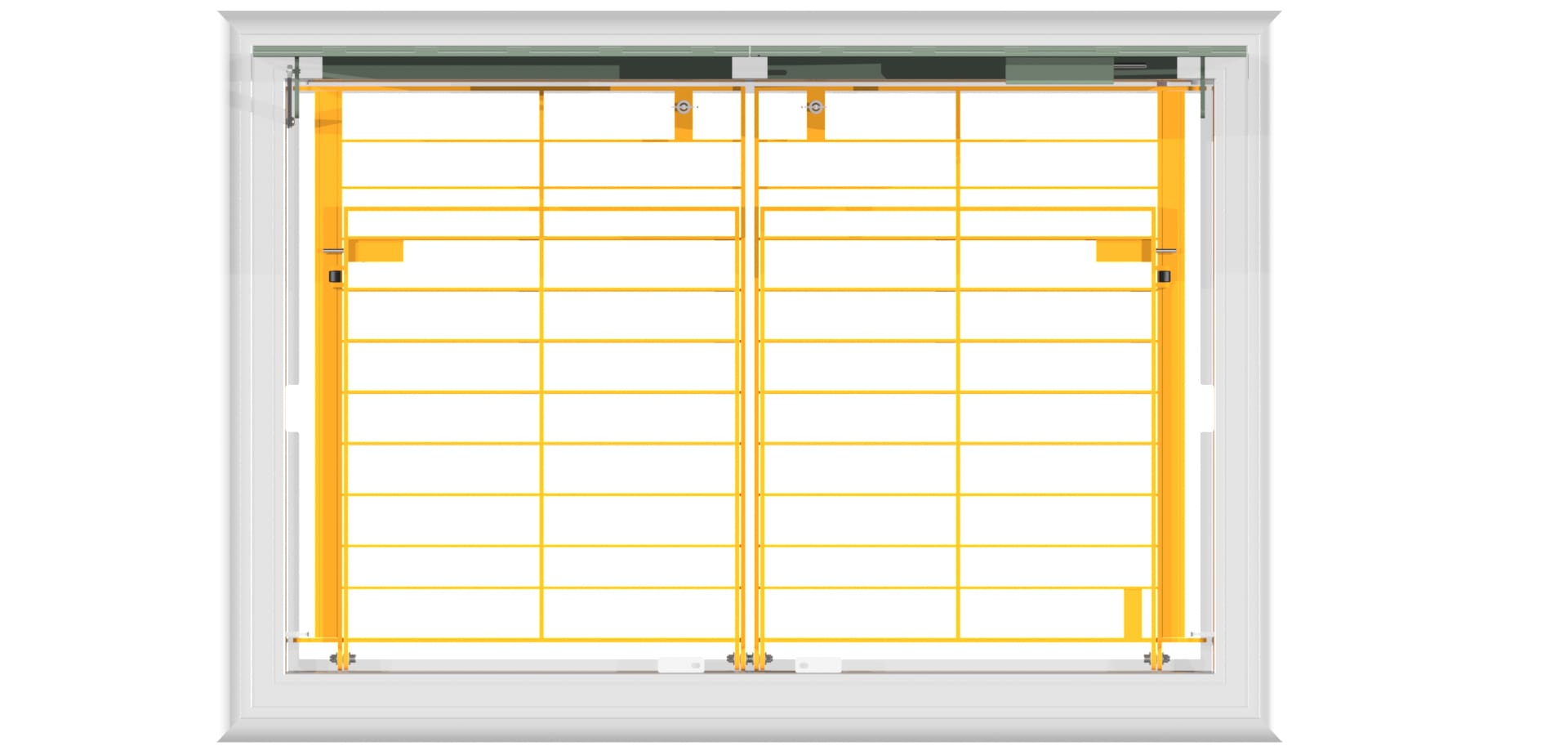

Safety Grates
Safety grates fold down with vertical supports perfectly overlapping to provide good visibility into wet well without needing to expose operator to the hole.
Vertical support spacing allows operator to withdraw float switches and instruments without having to raise safety grates.

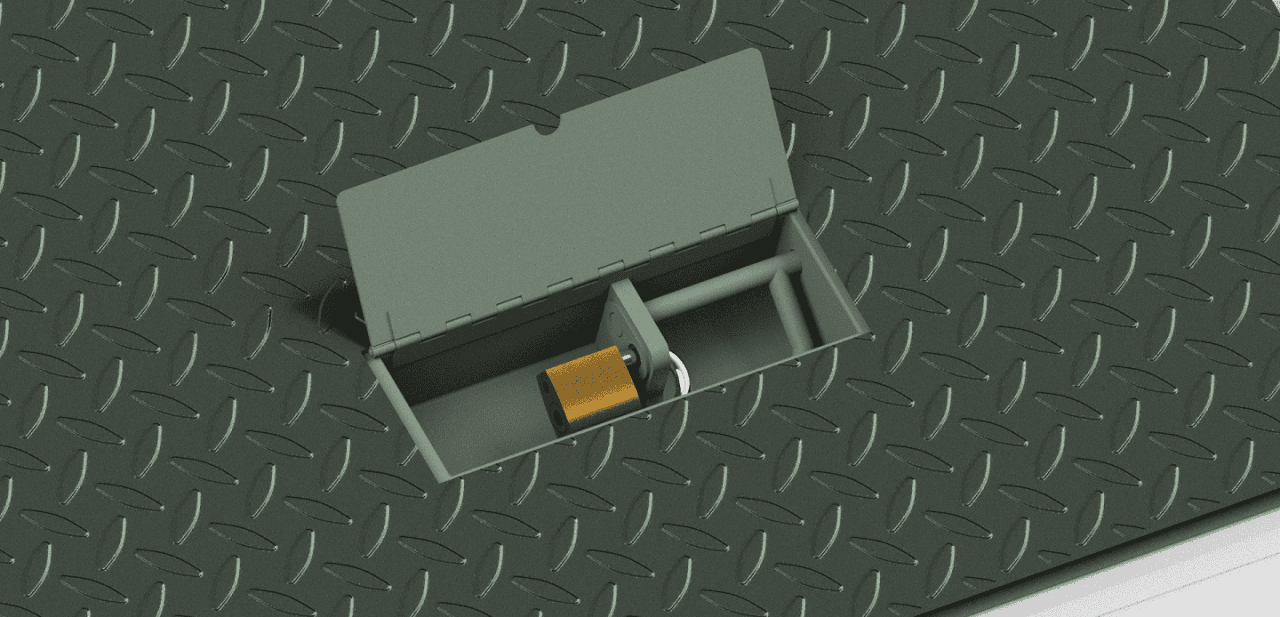

Lock box fits standard padlock
Lock box with sliding bolt that fits any standard water authority padlock.

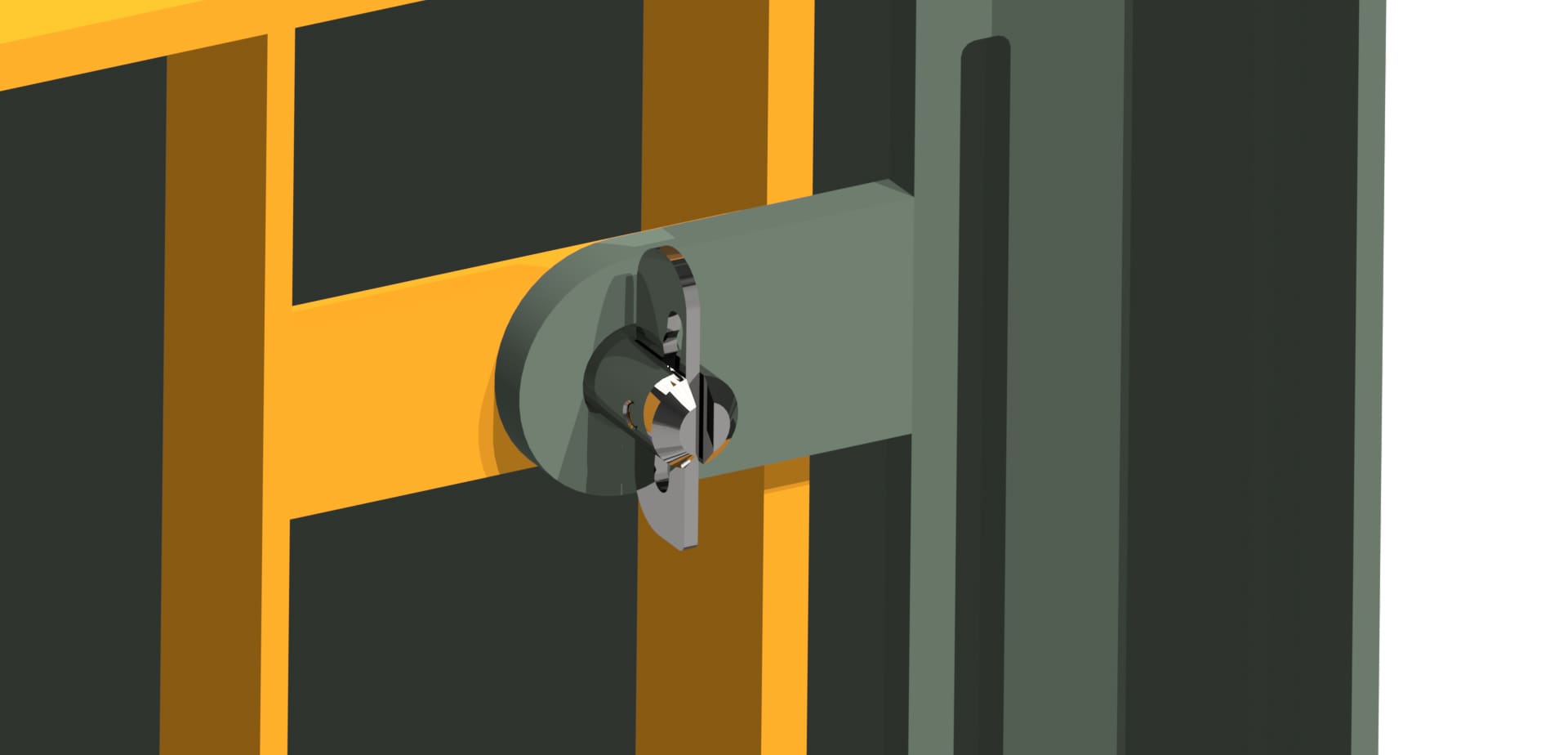

Locking safety catch
Locking safety catch to hold safety grate in position at 90º.

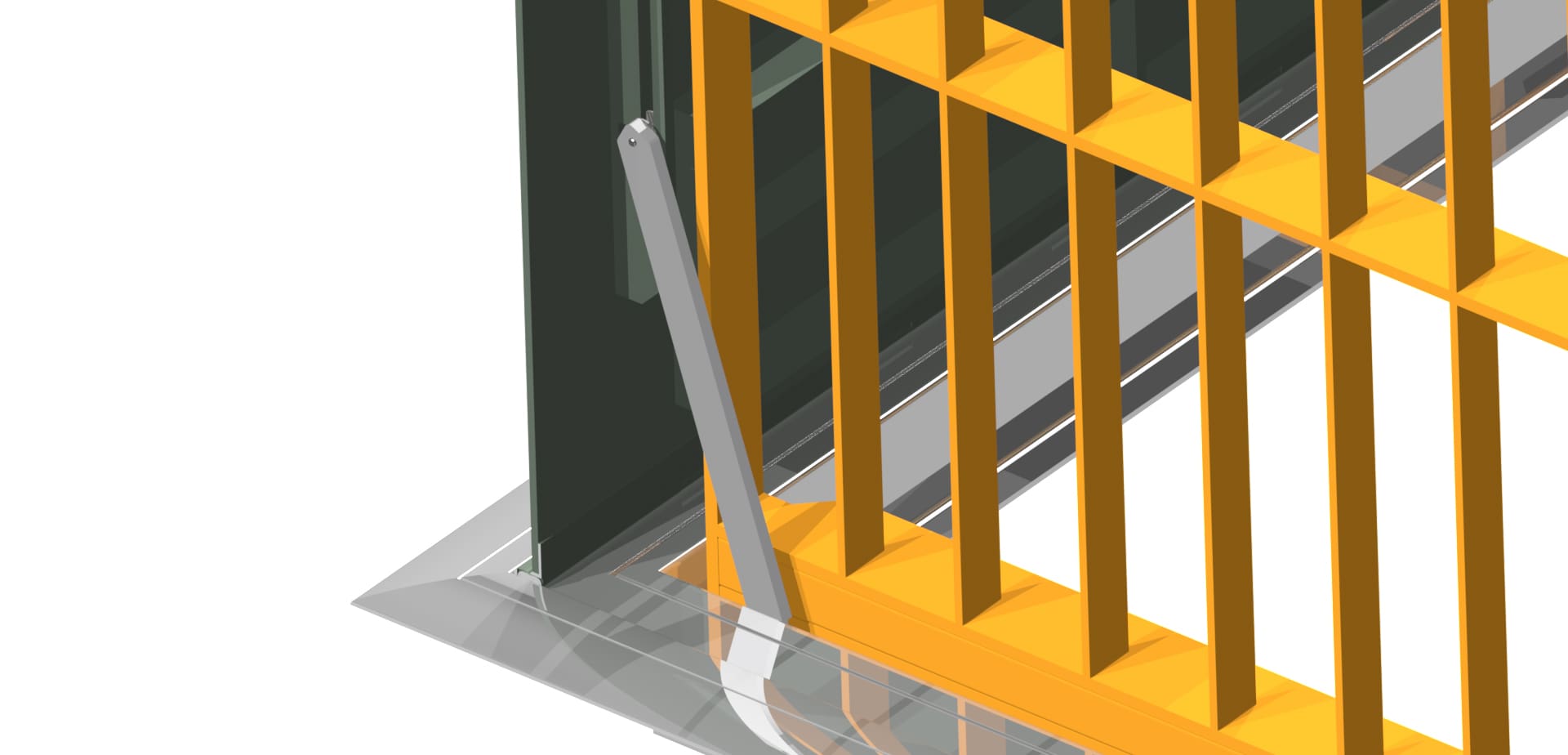

Support Strut
Support strut to lock lid securely in upright position.

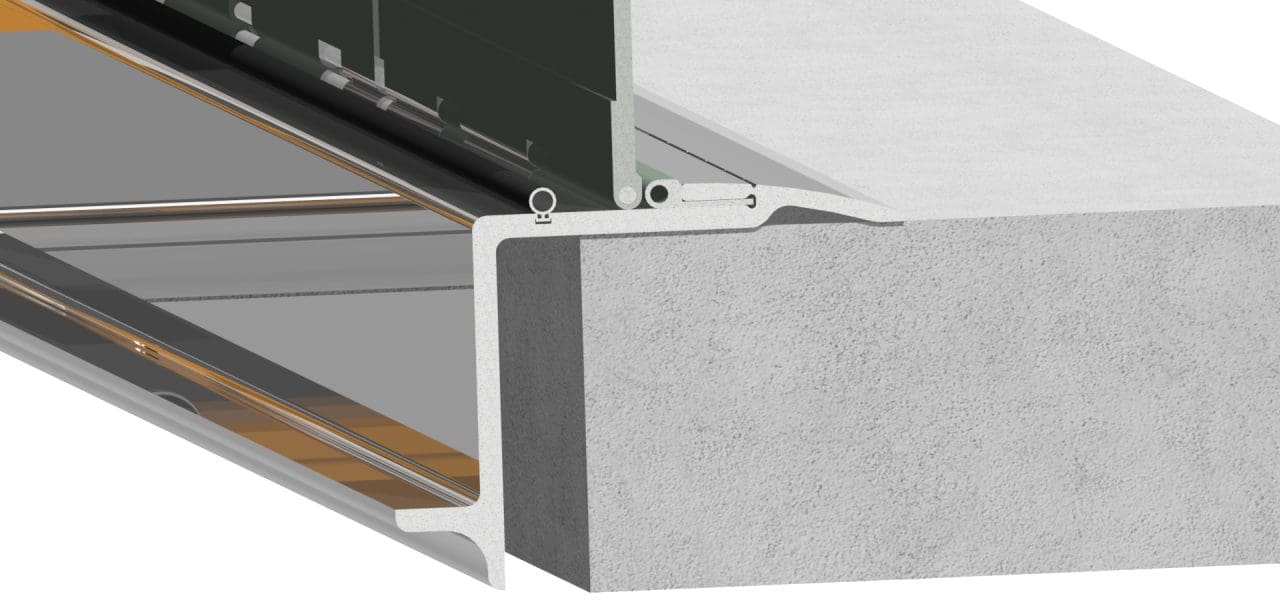

Captive Seal Profile
Captive seal profile in flexible ABS to eliminate sewer gas egress and prevent ingress of stormwater to the wet well.
Flush mounting continuous hinge to further eliminate trip hazards; can be removed and replaced easily.

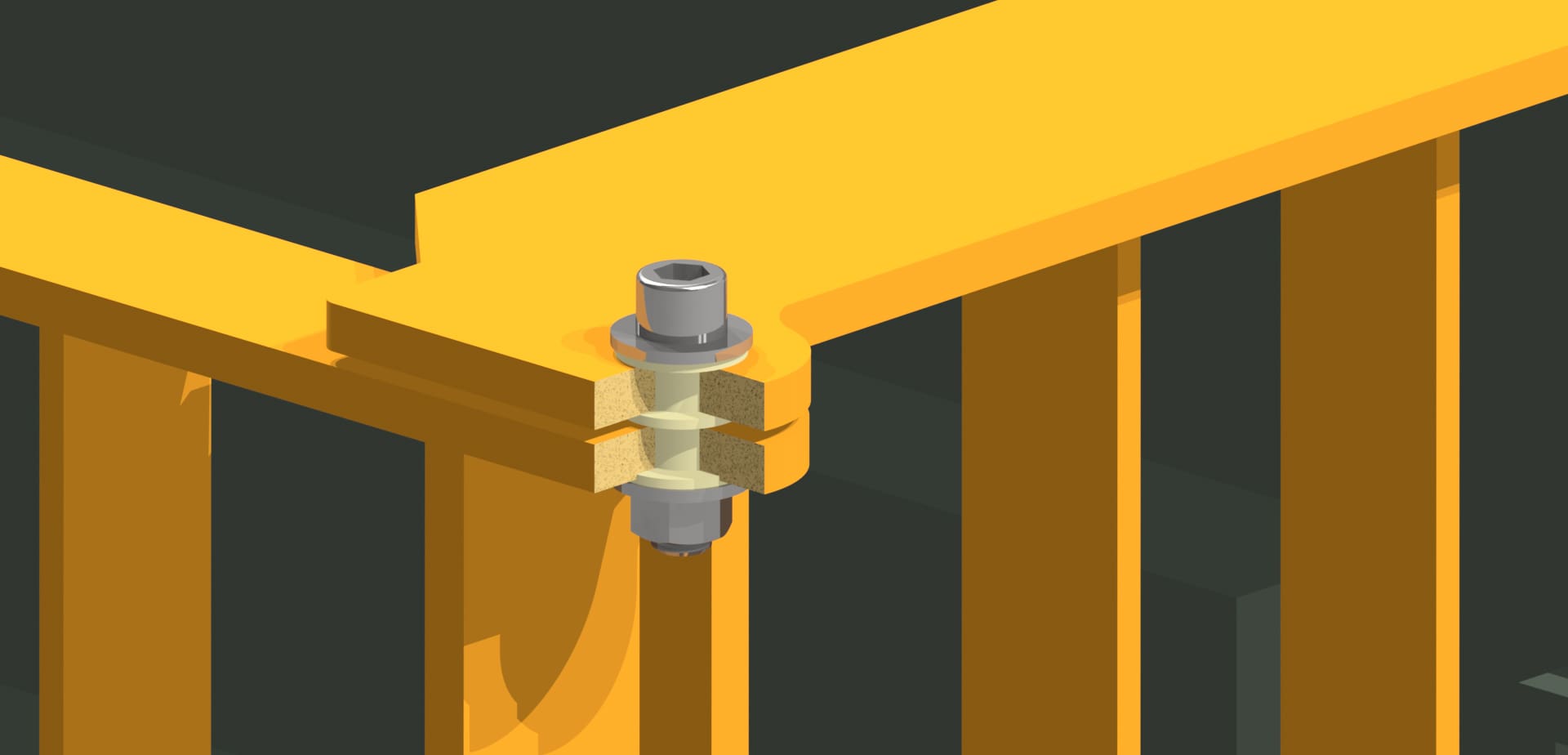

Stainless steel hinge pins
Stainless steel hinge pins with isolating nylon bushes.

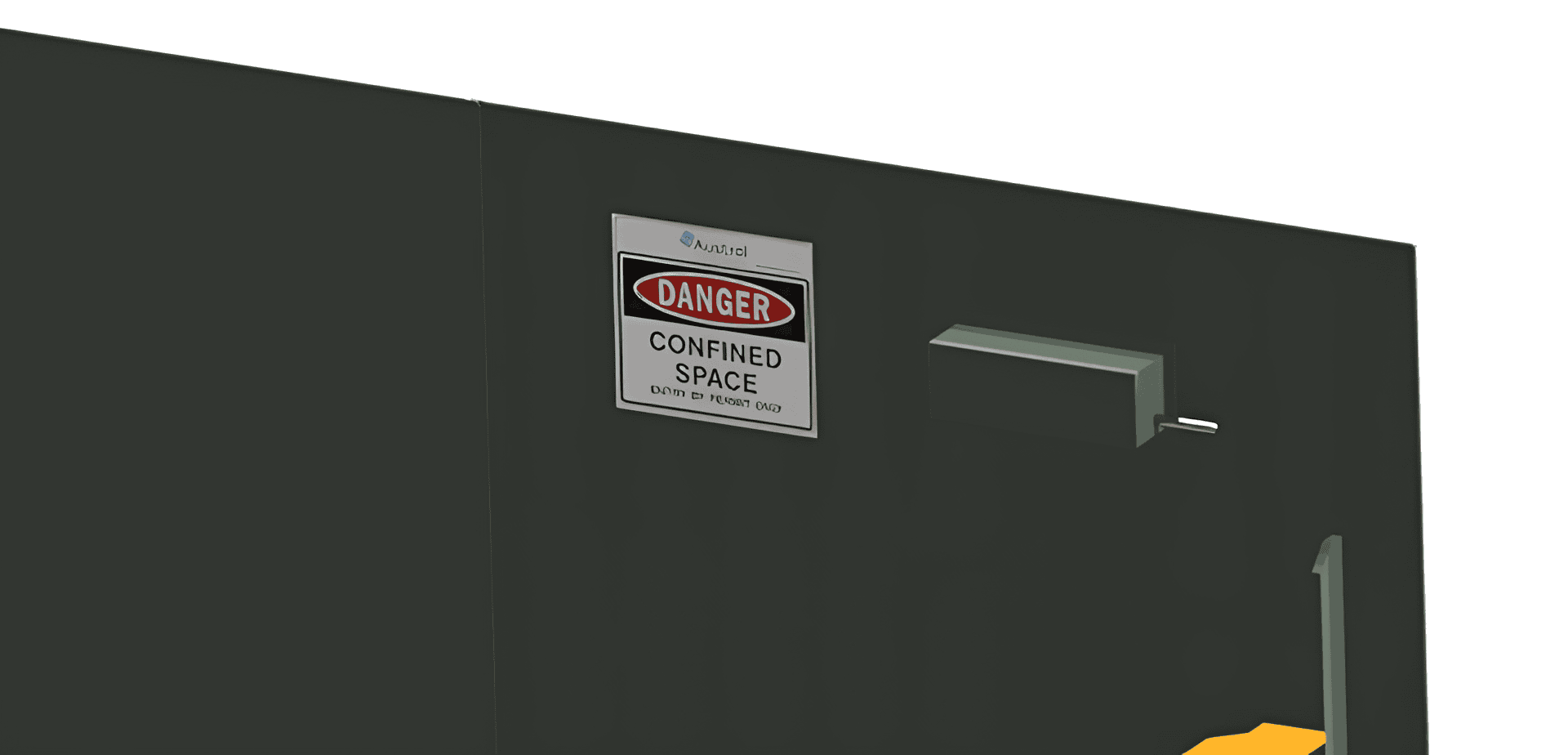

Danger sign
Confined space danger sign affixed to the underneath hatch cover.
